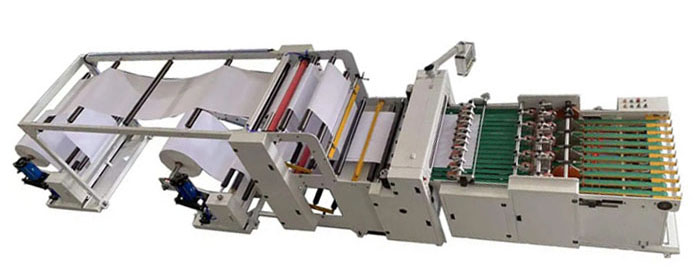

A4 Paper Cutting Machine
1400
The A4 paper cutting machine is a specialized paper-making processing equipment that accurately processes wide paper rolls or large paper stacks into standard A4 sizes (210 × 297mm).
It is widely used in the large-scale production of office paper and photocopy paper, and has functions such as slitting, counting, and stacking. Some models also integrate automatic packaging functions.
It is widely used in the large-scale production of office paper and photocopy paper, and has functions such as slitting, counting, and stacking. Some models also integrate automatic packaging functions.
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
20set / Month
Country of Origin
China
Stock Time
10Day
Model
Quantity
US $19999.00 - US $39999.00 / set
A4 paper machine is important in the production process of office paper, copy paper, etc. A4 paper cutting machine accurately cut large-sized paper (such as roll paper, fully open/split flat paper, etc.) into A4 sheet paper (210mm × 297mm).
In addition to A4 size, paper roll to a4 sheet cutting machine can cut out other office paper specifications such as A1, A2, A3, A5 paper by adjusting parameters.
1. Structure of a4 paper cutting machine
2. Workflow of a4 paper machine from paper roll to a4 sheet paper
1. Carrying the jumbo roll, a4 paper machine equipped with tension control and photoelectric correction to prevent paper deviation and wrinkling
2. A4 paper machine vertically cut the wide paper into 210mm widths, and horizontally cut it with a rotating knife/blade at a fixed length of 297mm; High end a4 paper machine adopt dual rotary blade sets, with an accuracy of ± 0.2mm
3. Conveyor and Stacking of a4 paper machine: Automatic sorting, stacking, and counting of cut A4 paper
4. Control system of a4 paper cutting machine: PLC+touch screen, can set size, speed, output, with paper breakage shutdown and fault alarm
3. Application of a4 paper cutting machine
A4 paper cutting machine suit for various office paper, such as wood pulp paper, photocopy paper, printing paper, writing paper, etc.
The paper roll to a4 sheet cutting machine can also be used for cutting some thin cardboard.
4. Technical parameters of a3 a4 paper cutting machine
Model | 1400 |
|---|---|
Jumbo roll diameter | ≤1400 mm |
Paper width | ≤1060 mm |
Cutting length | A3 A4 size |
Longitudinal cutting width | customizable |
Cutting speed | 10-150 times/min |
Fixed length precision | ±0.2mm |
Power Supply | 8.5kw |
Weight | 4500 kg |
Size (L*W*H) | 7500*2200*1400mm |
