A4 Paper Manufacturing Machine
2400
A4 Paper Manufacturing Machine Cultural Paper Jumbo Roll Production Line
There are many models of cultural paper writing paper making machine. For example:
Cylinder paper machine 1092/1575
Fourdrinier paper machine 1880/2400/3200
Twin-wire paper machine 2800/3600, etc
There are many models of cultural paper writing paper making machine. For example:
Cylinder paper machine 1092/1575
Fourdrinier paper machine 1880/2400/3200
Twin-wire paper machine 2800/3600, etc
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
50set / Year
Country of Origin
China
Stock Time
60Day
Model
Quantity
US $200000.00 - US $500000.00
/ set
Printer paper machine and copy paper machine production line
The A4 paper manufacturing machine is a fully automatic production line that uses wood pulp or recycled waste paper as raw materials to produce high-quality jumbo paper rolls, which are then precisely cut, sorted, and packaged into standard A4 paper products. As a highly integrated industrial equipment, the A4 paper manufacturing machine combines pulping, forming, pressing, drying, calendaring, and winding functions in one complete system. The copy paper machine and printer paper machine are specialized types of paper production equipment designed specifically for high-speed, high-smoothness office paper, making them ideal for office printing, copying, and daily writing applications.
The double-offset A4 paper manufacturing machine can efficiently produce various types of cultural paper, including high-grade copy paper, smooth writing paper, clear printing paper, high-speed printer paper, and other general-purpose office paper products.

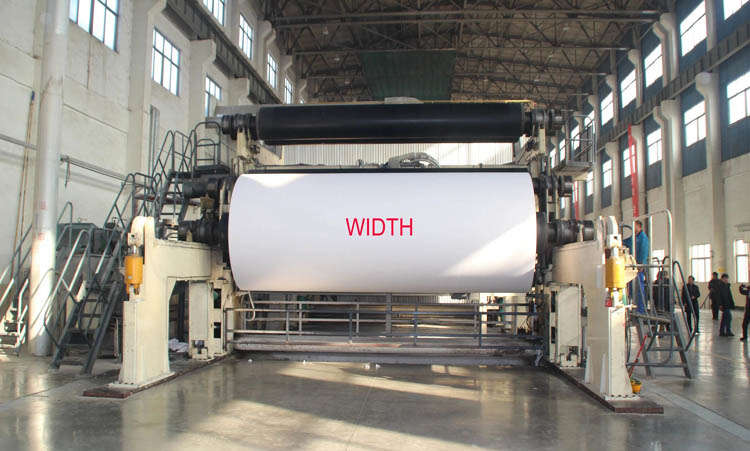

1. Model 2400 A4 paper manufacturing machine display
The main components of the A4 paper manufacturing machine typically include a stable forming section, efficient press section, energy-saving drying section, and high-precision calender section. These core parts ensure that the copy paper machine and printer paper machine can run stably for a long time and produce paper with consistent quality.
1. Flow system:Diluted pulp is evenly transported to the forming section of the A4 paper manufacturing machine to fully remove impurities, stabilize the pulp flow speed, and effectively ensure the uniformity and flatness of the finished paper sheet.
2. Forming section : The pulp is fully dehydrated on the forming fabric of the copy paper machine to form a continuous wet paper web, with the pulp concentration increased to a stable range of 15% – 25%.
3. Press section of printer paper machine : Through heavy-duty roller pressing and further dehydration, the wet paper web is compacted, which greatly improves paper tightness, surface smoothness, and overall physical strength.
4. Dryer section:The copy paper machine is equipped with multiple groups of high-efficiency drying cylinders, using steam heating to fully dry the paper, controlling the final moisture content at 8% – 10%, and effectively fixing the strength and stability of the finished paper.
5. Calender section:The calender device of the A4 paper manufacturing machine further optimizes the surface performance of the paper, significantly improving surface smoothness, glossiness, and printing adaptability.
6.Most configurations of the copy paper machine are equipped with a special glue applicator system (surface sizing or internal sizing), which effectively enhances the water resistance, ink absorption, and durability of the produced paper.
7.Winding section of the printer paper machine: The finished paper is neatly wound into large jumbo rolls, providing convenient conditions for subsequent cutting, slitting, and packaging processing.
2. Forming section : The pulp is fully dehydrated on the forming fabric of the copy paper machine to form a continuous wet paper web, with the pulp concentration increased to a stable range of 15% – 25%.
3. Press section of printer paper machine : Through heavy-duty roller pressing and further dehydration, the wet paper web is compacted, which greatly improves paper tightness, surface smoothness, and overall physical strength.
4. Dryer section:The copy paper machine is equipped with multiple groups of high-efficiency drying cylinders, using steam heating to fully dry the paper, controlling the final moisture content at 8% – 10%, and effectively fixing the strength and stability of the finished paper.
5. Calender section:The calender device of the A4 paper manufacturing machine further optimizes the surface performance of the paper, significantly improving surface smoothness, glossiness, and printing adaptability.
6.Most configurations of the copy paper machine are equipped with a special glue applicator system (surface sizing or internal sizing), which effectively enhances the water resistance, ink absorption, and durability of the produced paper.
7.Winding section of the printer paper machine: The finished paper is neatly wound into large jumbo rolls, providing convenient conditions for subsequent cutting, slitting, and packaging processing.

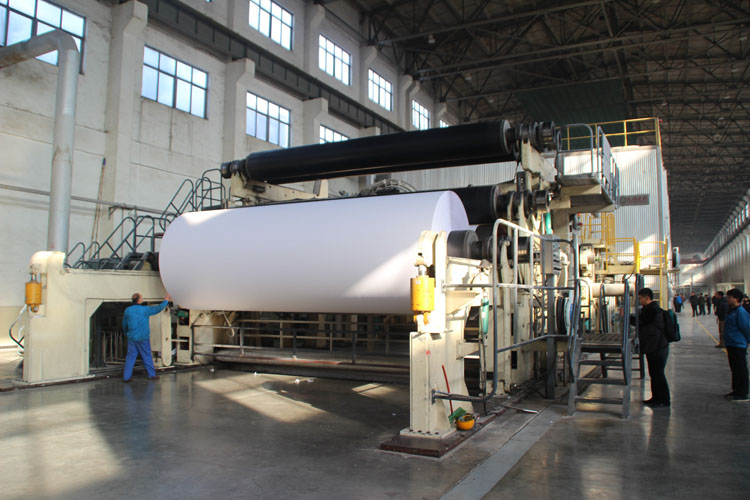

2. Model 2400 A4 paper manufacturing machine
Name | copy paper machine,printer paper machine,a4paper manufacturing machine |
|---|---|
Raw materials | wood,waste paper |
Final paper | copy paper |
Paper weight | 40-90g/m2 |
Paper width | 2400mm |
Capacity | 15-25 T/D |
Working speed | 100-600 m/min |
Drive way | AC frequency conversion speed ,section drive |

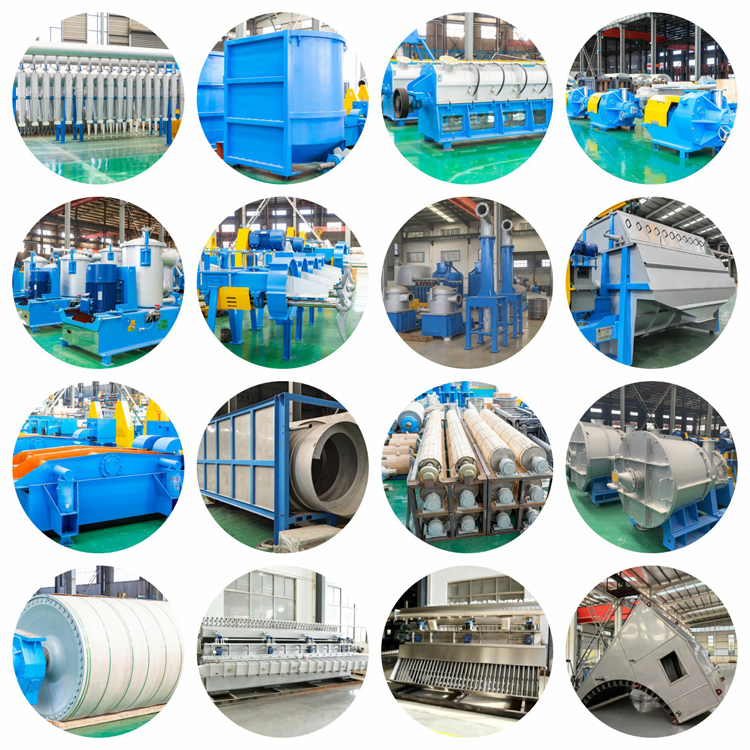

3. Main pulp equipment of the A4 paper manufacturing machine
Note: With different raw materials such as wood pulp, waste paper pulp, or mixed pulp, the pulping system and process configuration of the A4 paper manufacturing machine will be reasonably adjusted accordingly.
4. a4 size copy paper machine

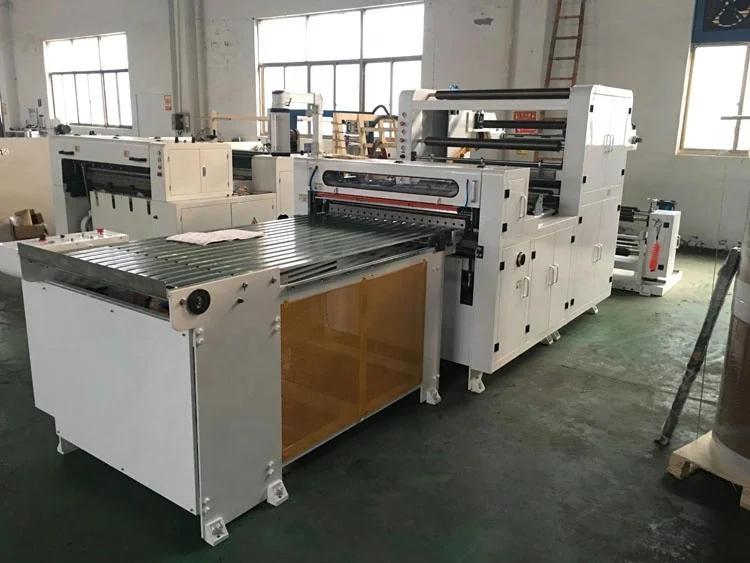

The A4 paper manufacturing machine is equipped with a high-precision cutting system that can accurately cut jumbo paper rolls into standard A4 size paper (210mm × 297mm), widely used in printers, copiers, and office supplies.
Technical parameters of a4 size copy paper machine
Model | 1100 |
|---|---|
Raw material max diameter | 1400 mm |
Max paper width | 1060 mm |
Cutting length | A4 size |
Cutting speed | 10-150 times/min |
Fixed length precision | ±0.2mm |
Power Supply | 8.5kw |

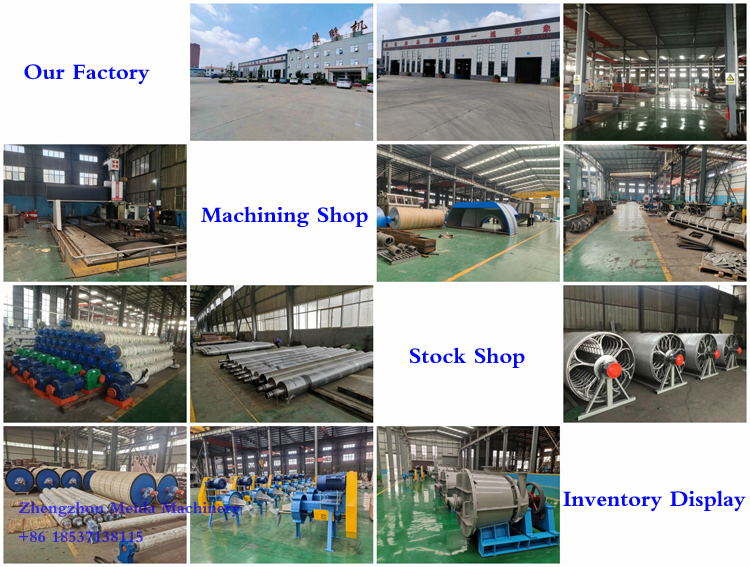

We warmly welcome customers from all over the world to visit our factory and inspect the production site of our advanced A4 paper manufacturing machine, copy paper machine, and printer paper machine.
