Dryer Hood for Paper Machine
1575/1880/2400/2800
Dryer hood is an important paper machine parts for ventilation and energy saving.
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
80set / Month
Country of Origin
CHINA
Stock Time
15Day
Quantity
US $1500.00 - US $12000.00
/ set
Paper machine hood is mainly used for drying part, also gluing part, is an important paper machine parts for ventilation and energy saving.
1. The function of paper machine hood
1. Dehumidification: dryer hood quickly pump and drain the water vapor evaporated in the drying department, to ensure drying efficiency and paper machine output.
2. Dryer hood control temperature and stability of paper
3. Dryer hood through heat recovery preheated wind supply, can significantly reduce steam and electricity consumption, per ton of paper energy consumption can be reduced about 20kWh, steam saving about 100kg.
2. Structure of dryer hood for paper machine parts
Main structure: aluminum inner and outer panels + 10-15cm insulated cotton, sealed, electric lift door, sliding door, built-in low voltage lighting and fire system.
1. The function of paper machine hood
1. Dehumidification: dryer hood quickly pump and drain the water vapor evaporated in the drying department, to ensure drying efficiency and paper machine output.
2. Dryer hood control temperature and stability of paper
3. Dryer hood through heat recovery preheated wind supply, can significantly reduce steam and electricity consumption, per ton of paper energy consumption can be reduced about 20kWh, steam saving about 100kg.
2. Structure of dryer hood for paper machine parts
Main structure: aluminum inner and outer panels + 10-15cm insulated cotton, sealed, electric lift door, sliding door, built-in low voltage lighting and fire system.
3. Main types of paper machine hood
1. Sealed dryer hood: fully closed, suitable for high-speed / wide-width paper machine.
2. Open dryer hood: mainly used for narrow / low speed old machine.
3. Yanker dryer hood: drying efficiency increased by 4-10 times, often used in high-speed toilet paper machine.
2. Open dryer hood: mainly used for narrow / low speed old machine.
3. Yanker dryer hood: drying efficiency increased by 4-10 times, often used in high-speed toilet paper machine.

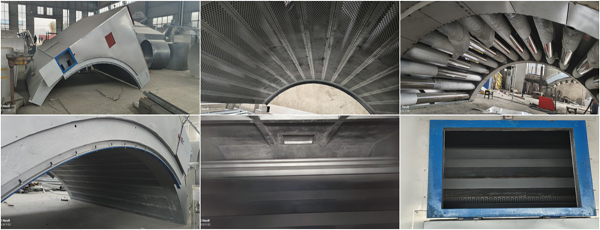

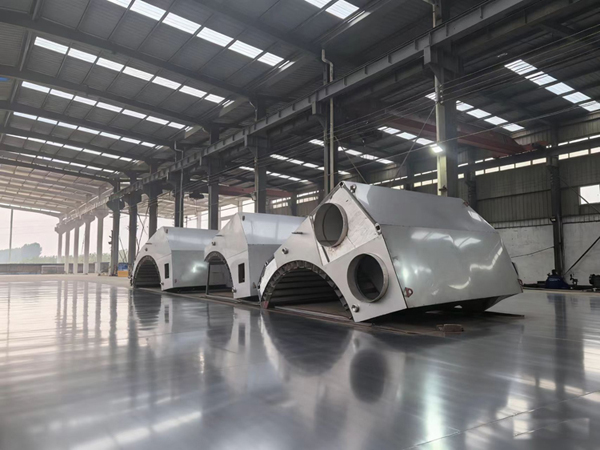

Display of paper machine parts
