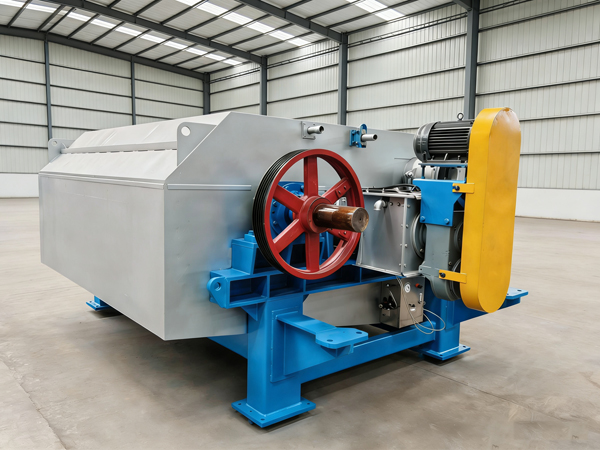

High Speed Pulp Washer
100/150/200/250/300
High-speed pulp washer cleans and separates impurities from pulp efficiently in papermaking process.
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
50set / Month
Country of Origin
china
Stock Time
20Day
Quantity
US $6000.00 - US $20000.00
/ set
High speed pulp washer is mainly used for extracting black liquor, separating impurities, and purifying pulp after steaming and boiling. pulp washing machine is widely used in the production process of chemical pulp and semi chemical pulp.
In the pulp making process, high speed pulp washer are usually arranged after the digester and before the screening equipment. pulp washing machine are key equipment that connects the cooking and bleaching sections, and they directly affects the subsequent bleaching cost of pulp and the quality of finished paper.
Working principle of high speed pulp washer
After the pulp enters high speed pulp washer, a strong turbulent stirring state is formed under the action of rotor, the fibers separate from the black liquor, and the black liquor is discharged through filter screen. The fibers are intercepted and discharged with the spiral conveying structure of high speed pulp washer.
After the pulp enters high speed pulp washer, a strong turbulent stirring state is formed under the action of rotor, the fibers separate from the black liquor, and the black liquor is discharged through filter screen. The fibers are intercepted and discharged with the spiral conveying structure of high speed pulp washer.
Advantages of high speed pulp washer
High speed pulp washer (black liquor extraction rate can reach over 90%), large capacity, and the ability to maintain the integrity of fiber structure at high speeds, reducing fiber loss; At the same time, the enclosed design of high speed pulp washer can reduce the volatilization of black liquor, which meets the requirements of environmentally friendly production.
High speed pulp washer (black liquor extraction rate can reach over 90%), large capacity, and the ability to maintain the integrity of fiber structure at high speeds, reducing fiber loss; At the same time, the enclosed design of high speed pulp washer can reduce the volatilization of black liquor, which meets the requirements of environmentally friendly production.
Specification of high speed pulp washer
| Model | 100 | 150 | 200 | 250 | 300 |
| Network width (mm) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Feed consistency | 0.5%-2% | ||||
| Outlet consistency | 10%-15% | ||||
| Ash removal rate | ≥90% | ||||
| Capacity （t/d） | 15-20 | 20-40 | 40-60 | 80-100 | 120-150 |
| Power | 11 kw | 18.5 kw | 22 kw | 37 kw | 45 kw |
| Spiral power | 1.5 kw | 1.5 kw | 2.2 kw | 2.2 kw | 3 kw |
