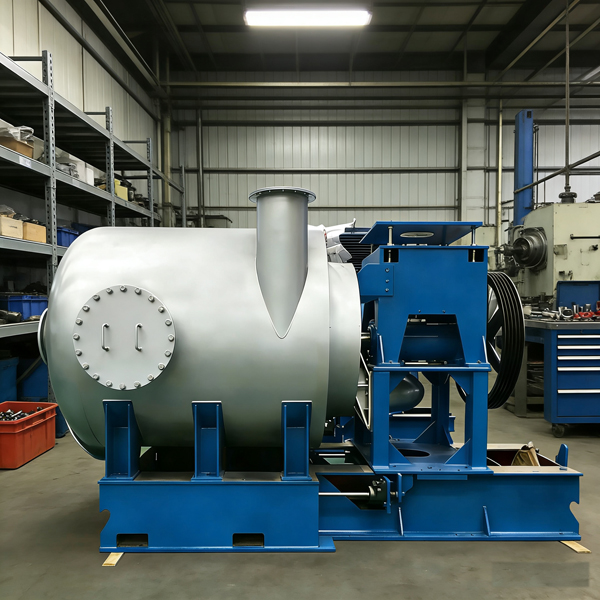

Impurity Reject Separator
M1/M3/M5/M8
Impurity reject separator is used in low concentration pulping systems to remove impurities of different currencies.
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
80set / Month
Country of Origin
china
Stock Time
20Day
Quantity
US $3000.00 - US $12000.00
/ set
Centrifugal impurity reject separator rely on the principle of centrifugal force to achieve efficient separation of impurities and fibers, and are commonly used in pulp production lines with high impurity content.
Working principle of reject separator
When impurity rdetrasher runs, pulp enters the body at high pressure and rotates at high speed inside to form a centrifugal field:
1. Metal debris, sand, glass, etc. are thrown towards the inner wall of the impurity rdetrasher and settle along the wall until they are discharged from the slag discharge outlet
2. Impurity rdetrasher also integrates a light impurity separation structure, which can remove plastic, foam, etc
3. Fiber pulp converges towards the central area and flows out through the pulp outlet
When impurity rdetrasher runs, pulp enters the body at high pressure and rotates at high speed inside to form a centrifugal field:
1. Metal debris, sand, glass, etc. are thrown towards the inner wall of the impurity rdetrasher and settle along the wall until they are discharged from the slag discharge outlet
2. Impurity rdetrasher also integrates a light impurity separation structure, which can remove plastic, foam, etc
3. Fiber pulp converges towards the central area and flows out through the pulp outlet
Application scenarios of reject separator
Impurity rdetrasher is mainly used in the coarse and intermediate purification stages of waste paper pulping, and rdetrasher can also be applied to the impurity pretreatment of native plant fiber pulping. reject separator can effectively protect subsequent equipment and improve the quality of finished paper.
Impurity rdetrasher is mainly used in the coarse and intermediate purification stages of waste paper pulping, and rdetrasher can also be applied to the impurity pretreatment of native plant fiber pulping. reject separator can effectively protect subsequent equipment and improve the quality of finished paper.
Parameters of impurity reject separator
| Model | 1 | 3 | 5 | 8 |
| Volume | 1.2 m3 | 3 m3 | 5 m3 | 8 m3 |
| Screen hole diameter | 8-18 mm | |||
| Consistency | 4%-5% | |||
| Power | 55 kw | 75 kw | 160 kw | 220 kw |
| Suited pulper | 15-25 m3 | 25-50 m3 | 50-70 m3 | 70-100 m3 |
