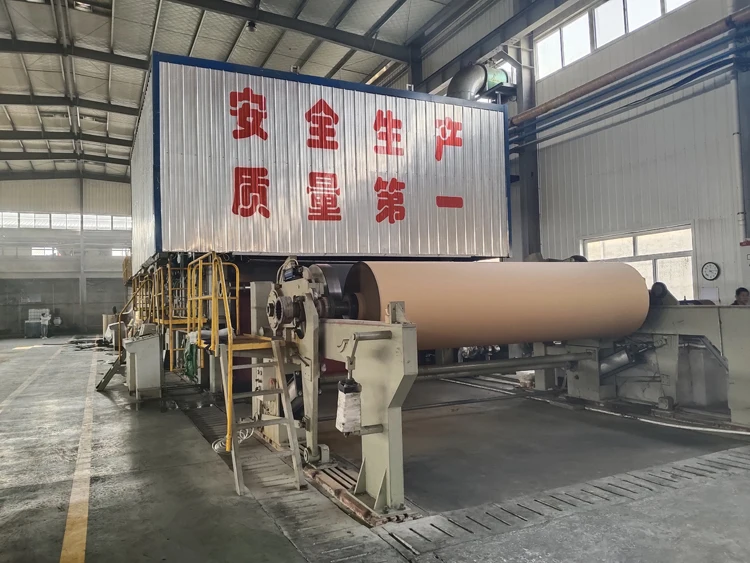

Kraft Paper Machine
1880
Small Fluting Liner Kraft Paper Machine for Corrugated Wrapper Production Line
1.Raw materials : wood,waste paper, white or brown cellulose,virgin pulp
2.Output paper : Kraft paper, corrugated paper, fluting liner paper ,wrapping paper etc
3. Capacity : 15-30 tons per day
4. Net paper width : 2400 mm
5. Output paper weight : 50-300 g/m2
6. Working speed : 100-220m/min
1.Raw materials : wood,waste paper, white or brown cellulose,virgin pulp
2.Output paper : Kraft paper, corrugated paper, fluting liner paper ,wrapping paper etc
3. Capacity : 15-30 tons per day
4. Net paper width : 2400 mm
5. Output paper weight : 50-300 g/m2
6. Working speed : 100-220m/min
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
50set / Year
Country of Origin
China
Stock Time
35Day
Model
Quantity
US $100000.00 - US $350000.00
/ set
According to paper forming of kraft paper machine:
Fourdrinier paper machine, Cylinder mould paper machine, Twin-wire paper machine, Multi-ply former paper machine.
Choose suitable wrapper making machine based on requirements such as paper quality and output.
kraft paper machine is also wrapper making machine and corrugated paper machine,but make adjustments based on the finished paper.
Main parts of wrapper making machine are pulp equipment, forming section, press section, dryer section, and calender.
1.Pulp equipment of kraft paper machine produces high-quality pulp
2.Forming section of corrugated paper machine is responsible for forming the pulp
3.Dehydration of the press section of wrapper making machine
4.Dryer section of corrugated paper machine removes residual moisture
5.Calender of wrapper making machine ensures smoothness of the paper
Brife introduction of kraft paper machine
| 1 | Paper style | Corrugated wrapping kraft paper |
| 2 | Capacity | 3-30 t/d |
| 3 | Raw materials | wood,straw, waste paper, various cellulose pulp |
Model 1880 corrugated paper machine details as example
Most use cylinder mould kraft paper machine,If large capacity, fourdrinier corrugated paper machine can be chosen
1 Technical parameter of corrugated paper machine:
1 | Raw materials | wood,waste paper, white or brown cellulose,virgin pulp |
2 | Output paper | wrapping paper kraft paper |
3 | Capacity | 10-20 t/d |
4 | Net paper width | 1880 mm |
5 | Output paper weight | 40-300g/m2 |
6 | Diameter of dryer | 2500mm |
7 | Working speed | 100-200m/min |
8 | The gauge | 2800mm |
9 | Take area | 1000m2 |
10 | Drive and control | Alternating current, frequency conversion, section drive |
Finished paper sample for kraft paper machine

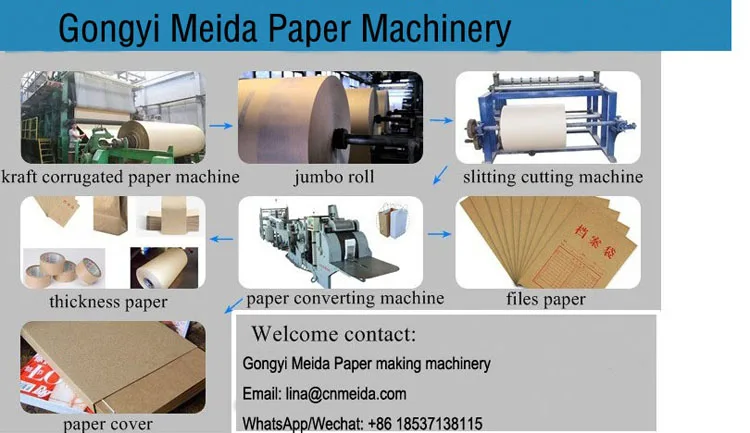

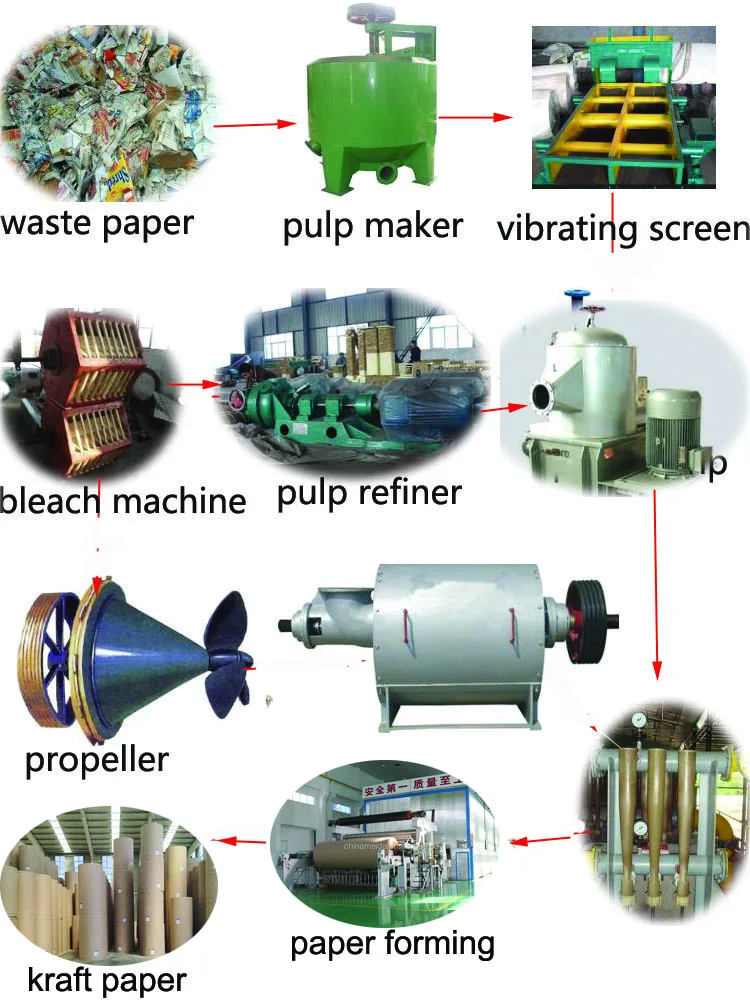

Making Process - wrapper making machine

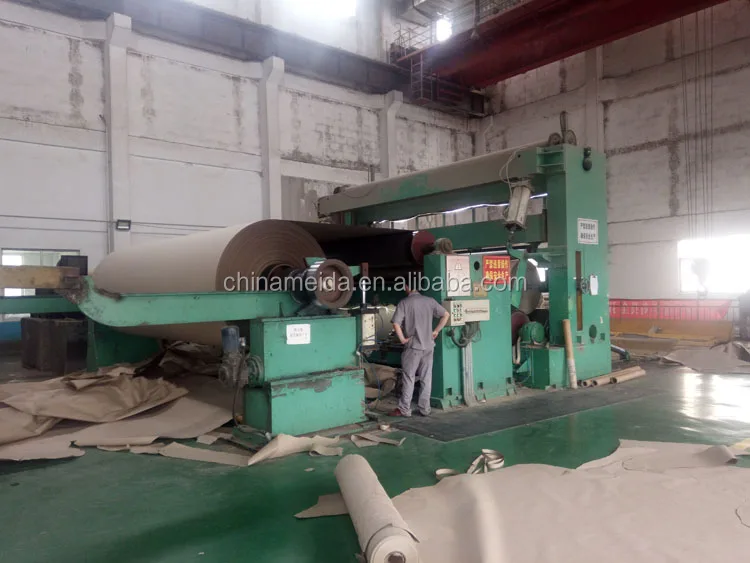

Kraft corrugated paper machine supporting rewinding machine

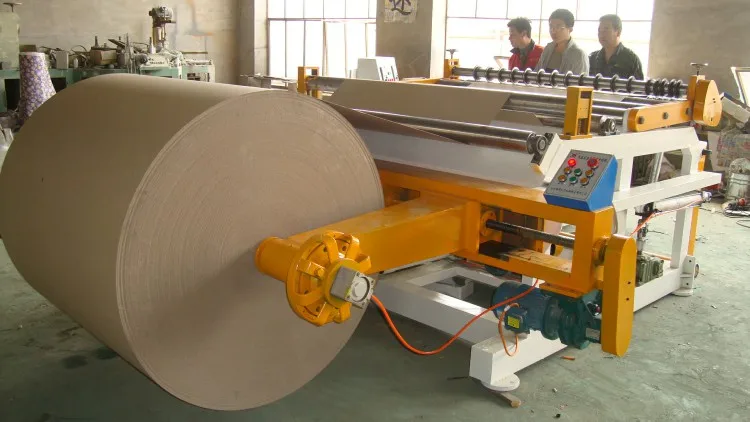

Corrugated kraft paper machine supporting slitting machine

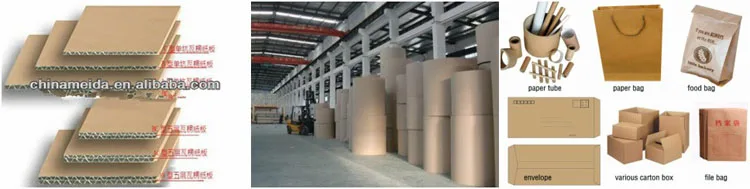

Other applications of finished paper from wrapper making machine
