Packing Paper Machine

1092

Raw materials : waste paper .virgin pulp, waste carton,wood
Output paper : packing paper
Capacity : 2-8 t/d
Working speed : 100-500m/min
Paper weight : 50-300g/m2
Paper width : 787-3500mm

Delivery

EXW,FOB,CFR,CIF

Supply Ability

50set / Year

Model

Quantity

US $50000.00 - US $150000.00 / set

Contact Now

add to cart

According to paper forming of packing paper machine:

Fourdrinier paper machine, Cylinder mold paper machine, Twin-wire paper machine, Multi-ply former paper machine.

Choose the suitable packing paper and corrugated paper making machine based on requirements such as paper quality and output.

Packing paper machinedisplay

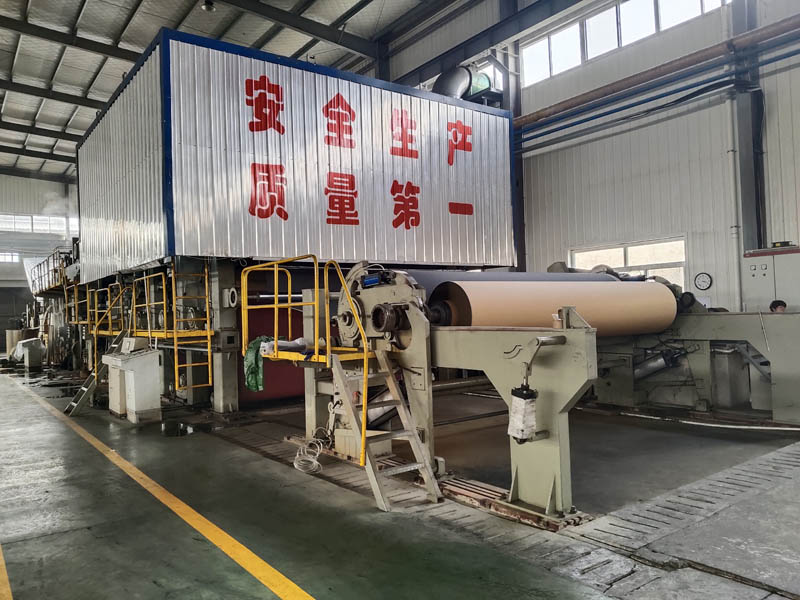

corrugated packing paper machine

Main parts of packing paper and corrugated paper making machine:

pulp equipment, forming section, press section, dryer section, and calender.

1.Pulp equipment of packing paper and corrugated paper making machine produces high-quality pulp
2.Forming section of packing paper machine is responsible for forming the pulp
3.Dehydration of the press section of corrugated paper making machine
4.Dryer section of packing paper and corrugated paper making machine removes residual moisture
5.Calender of packing paper machine ensures smoothness of the paper

Finshed packing paper and corrugated paper

packing paper machine

Technical parameter of corrugated paper and packing paper machine

1. Model	1092
2. Output paper	packing paper ,corrugated paper
3. Gram weight	80-300g/m2
4. Net paper width	1092mm
5. Design work speed	100--220m/min
6. Work speed	80--200m/min
7. Daily capacity	3-8t/d
8. Drive way	AC variable frequency, section drive
9. Felt	Normal Chemical fiber woven felt
10. Forming wire	Stainless Steel plate
11. structural layout	Monolayer

Raw Materials for making corrugated paper and packing paper

Raw Materials for packing paper machine

Application of packing paper and corrugated paper

packing paper machine

Spare Parts Explain

Cylinder mold couch dryer cylinder spreading roller for corrugated kraft packing paper machine

packing paper machine

Dryer cylinder

In the papermaking process, it is a pressure vessel used to dry paper. The number of cast iron drying

cylinders accounts for about two-thirds of the total number of pressure vessels in the paper industry.

dryer cylinder for packing paper machine

Technical parameters of drying cylinder for paper making

Model	Diameter	Design pressure Mpa	Material	Hardness HB	Web width mm	Wall thickness mm	Roughness	Working speed m/min
1000	1000mm	0.3-0.5	HT250-300	190-240	1350-5000	18-27	0.2-0.4	100-800
1500	1500mm	0.3-0.8	HT250-300	190-240	1350-5000	25-32	0.2-0.4	100-800
1800	1800mm	0.3-0.8	HT250-300	190-240	1350-5000	28-36	0.2-0.4	100-800
2000	2000mm	0.3-0.8	HT250-300	190-240	1350-5000	30-40	0.2-0.4	100-800
2500	2500mm	0.3-0.8	HT250-300	190-240	1350-5000	32-47	0.2-0.4	100-800
3000	3000mm	0.3-0.8	HT250-300	190-240	1350-5000	37-56	0.2-0.4	100-800

Cylinder mould

There are string type, diagonal type, winding type .

Cylinder mold of toilet tissue machine includ spindles, grids, spokes and spacers. with spokes equally spaced on main shaft, with wire racks mounted on spokes,stainless steel support ring is embedded at outer end of support bar, and grid is installed along outer edge of support steel ring and spoke, and is tightly wound with stainless steel wire.
The cylinder mold of toilet tissue machine is light in weight, corrosion-resistant and reduces energy consumption.

cylinder mold for packing paper machine

Cylinder mould specifications

Diameter	Face width range	Fit width of paper
1000mm	1000-5000mm	1092/1575/1760/1880/ 2400/2800/3200/3600mm
1250mm
1500mm
1800mm
2000mm

Other spare parts of packing paper machine

Hydrapulper,Vibrating screen,Headbox,Desander,Grinding machine,etc.

spare parts of packing paper machine

Couch roller,Pressure roller,Back roller,Scroll roll, Felt roll,etc.

spare parts of packing paper machine

Felt for packing paper machine

It is mainly used in drying part, shipping and filtering of other parts for making paper.
It is a device for forming and dewatering paper on paper machine.
It dehydrates the pulp suspension from the headbox and runs the paper web to the subsequent section.

Felt for packing paper machine
