Paper Machine Double Disc Pulp Refiner
450/500/550/600/660/720/900/1100
Double disc pulp refiner refines pulp fibers to improve paper texture and strength.
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
80set / Month
Country of Origin
china
Stock Time
20Day
Quantity
US $2500.00 - US $12000.00
/ set
Double disc refiner mechanical pulp is commonly used pulping in paper industry, mainly used for rough and fine pulp refiner, continuous pulp refiner and pulp residue refining, and waste paper pulp refiner.

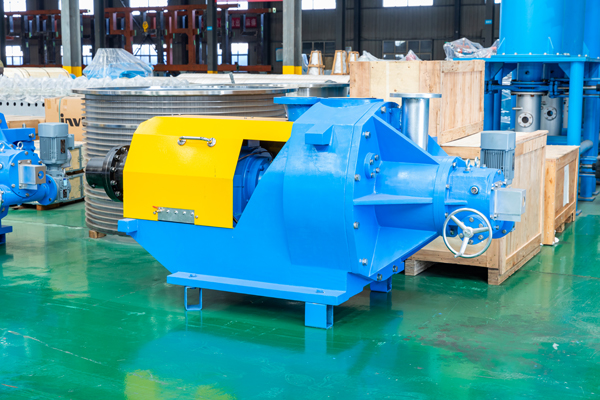

Structure of Double Disc Refiner Mechanical Pulp
Double disc refiner mechanical pulp consists of refining chamber, transmission mechanism, base, motor, etc.
refining chamber has 2 fixed grinding discs, which are respectively fixed on the casing and moving seat, and 2 rotating grinding discs installed on the rotating disc, forming 2 grinding zones.
Double disc refiner mechanical pulp consists of refining chamber, transmission mechanism, base, motor, etc.
refining chamber has 2 fixed grinding discs, which are respectively fixed on the casing and moving seat, and 2 rotating grinding discs installed on the rotating disc, forming 2 grinding zones.
Working Principle of Double Disc Refiner Mechanical Pulp
Pulp enters the double disc refiner, and then under the action of centrifugal force and pulp inlet pressure, it is rubbed and squeezed by the toothed disc to loosen and moderately cut the fibers, completing the pulp refiner.
Pulp enters the double disc refiner, and then under the action of centrifugal force and pulp inlet pressure, it is rubbed and squeezed by the toothed disc to loosen and moderately cut the fibers, completing the pulp refiner.
Feature of Double Disc Refiner Mechanical Pulp
Double disc refiner has stable pulping effect and strong applicability. Changing the grinding disc can adapt to various pulp, and pulp refiner is easy to maintain.
Double disc refiner has stable pulping effect and strong applicability. Changing the grinding disc can adapt to various pulp, and pulp refiner is easy to maintain.
Parameters of Double Disc Refiner Mechanical Pulp
| Model | 450 | 500 | 550 | 600 | 660 | 720 | 900 | 1100 |
| Disc diameter | 450mm | 500mm | 550mm | 600mm | 660mm | 720mm | 900mm | 1100mm |
| Speed | 980 r/min | 750 r/min | 600 r/min | |||||
| Capacity(t/d) | 8-80 | 10-100 | 10-120 | 12-150 | 12-200 | 15-250 | 20-400 | 40-800 |
| Consistency | 3%-5% | |||||||
