Thermal Disperser Machine for Pulp
550/650/800
Thermal disperser is the core equipment for processing waste paper pulp, mainly used to separate impurities such as adhesives, plastic sheets, ink particles, etc. in waste paper pulp.
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
60set / Month
Country of Origin
china
Stock Time
20Day
Quantity
US $3000.00 - US $12000.00
/ set

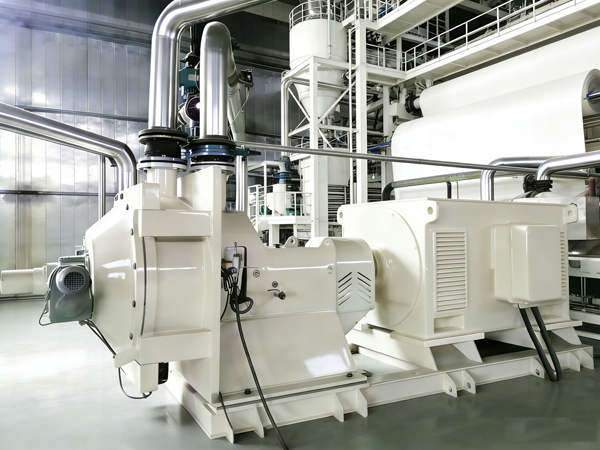

Working principle of pulp thermal dispersion system
Thermal disperser machine thoroughly mixes high concentration pulp with steam, and under the combined action of high temperature (about 100-130 ℃), high pressure, and shear force, softens impurities, evenly disperses them in the pulp fibers, and avoids them from adhering to the mesh, or finished paper in the subsequent papermaking process.
Structure of pulp thermal dispersion system

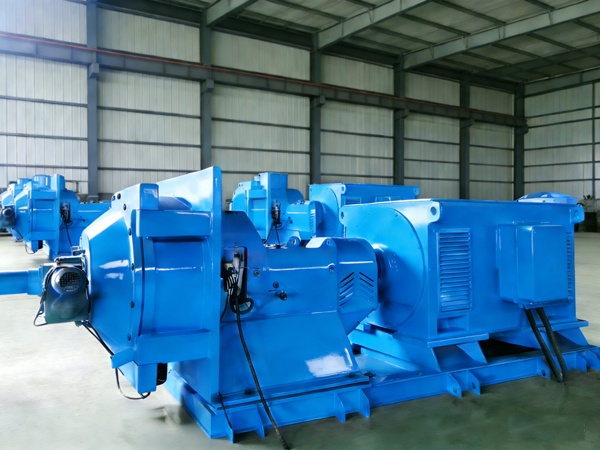

Thermal disperser machine consists of feeding system, preheating and stirring device, dispersing grinding disc, transmission system, discharging device, and control system.
Thermal disperser machine can be divided into single disc thermal disperser machine and double disc thermal disperser machine.
Double disc thermal disperser machine have higher dispersion efficiency, which are widely used in large and medium-sized waste paper pulp production lines.
During operation, the thermal dispersion system can accurately control temperature, concentration, and speed.
Thermal disperser machine can be divided into single disc thermal disperser machine and double disc thermal disperser machine.
Double disc thermal disperser machine have higher dispersion efficiency, which are widely used in large and medium-sized waste paper pulp production lines.
During operation, the thermal dispersion system can accurately control temperature, concentration, and speed.
Specification of pulp thermal dispersion system
Model | 550 | 650 | 800 |
Capacity | 40-60 t/d | 60-80 t/d | 80-100 t/d |
Pulp consistency | 25%-40% | ||
Diameter | 550 mm | 650 mm | 800 mm |
