Tissue Paper Machine
1575
Toilet Tissue Paper Making Machine
Raw materials : waste paper, white or brown cellulose,virgin pulp,wood,bamboo
Output paper : toilet paper, tissue paper, facial tissue paper ,kitchen paper etc
Paper width : 1575 mm
Paper weight : 13-40 g/m2
Working speed : 100-300 m/min
Capacity : 5-8 t/d
Raw materials : waste paper, white or brown cellulose,virgin pulp,wood,bamboo
Output paper : toilet paper, tissue paper, facial tissue paper ,kitchen paper etc
Paper width : 1575 mm
Paper weight : 13-40 g/m2
Working speed : 100-300 m/min
Capacity : 5-8 t/d
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
60set / Year
Country of Origin
China
Stock Time
40Day
Model
Quantity
US $40000.00 - US $150000.00
/ set
Toilet Tissue Paper Machine Description
1. Model 1575 toilet tissue paper making machine dispaly
The main parts of toilet tissue paper machine are forming section, press section, drying section, and calender.
Forming section shapes paper, press section dehydrates, dryer section removes residual moisture, calender ensures smoothness of paper.
Technical parameter of toilet tissue paper making machine:
1 | Model | 1575 toilet tissue paper machine |
2 | Output paper | tissue paper |
3 | Capacity | 4-6 t/d |
4 | Net paper width | 1575mm |
5 | Output paper weight | 13-40g/m2 |
6 | Diameter of dryer | 2000mm |
7 | Working speed | 80-180m/min |
8 | The gauge | 2400mm |
9 | Take area | 500m2 |
10 | Drive and control | Alternating current, frequency conversion |
11 | Machine weight | 80tons |
12 | Machine size | 25*4.5*5m |
2. Wood, waste paper, sugarcane bagasse, wheat straw, and bamboo used as raw materials for toilet tissue paper machine production.
3. working principle of toilet tissue paper making machine
Waste paper or wood are processed by pulp system to form pulp meets the requirements of toilet tissue paper machine, and enter toilet tissue paper machine at a concentration of 0.3% -1.3%. pulp is evenly sprayed into forming fabric of toilet tissue paper machine through headbox, gradually filtered and dehydrated to form wet paper web. The wet paper web is further dehydrated in press section of toilet tissue paper making machine, and finally heated by steam in dryer section to form tissue.
Different raw materials, pulp system of toilet tissue paper machine will be different.
Process diagram of toilet tissue paper machine (waste paper recycle)

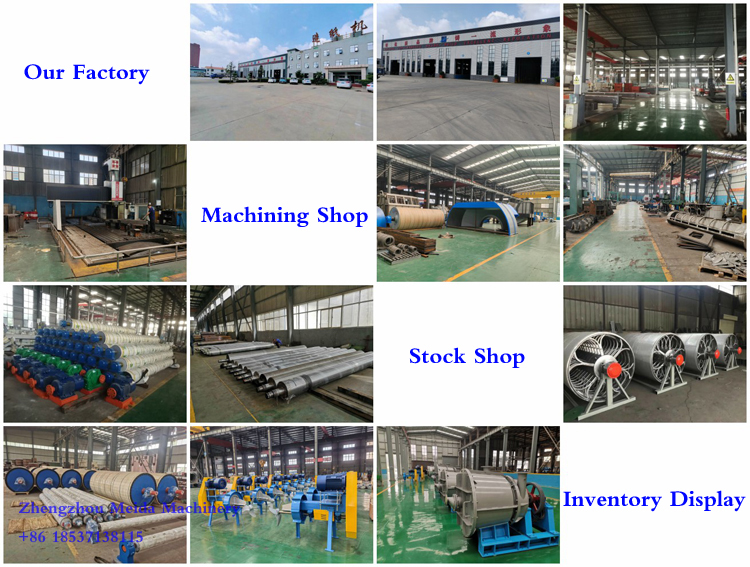

4. Factory of toilet tissue paper making machine

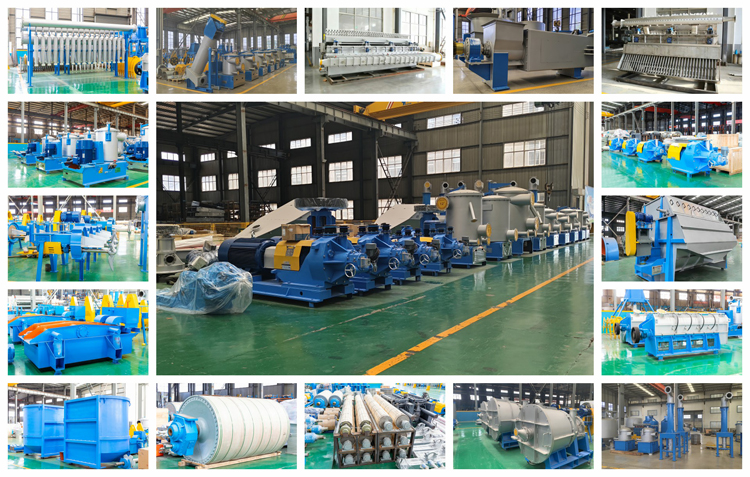

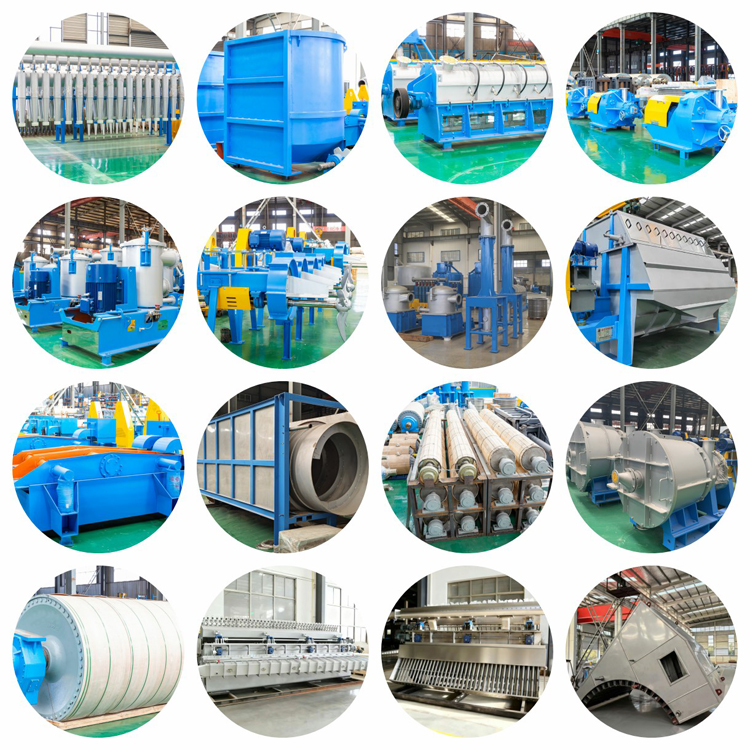

Main spare parts of toilet tissue paper making machine

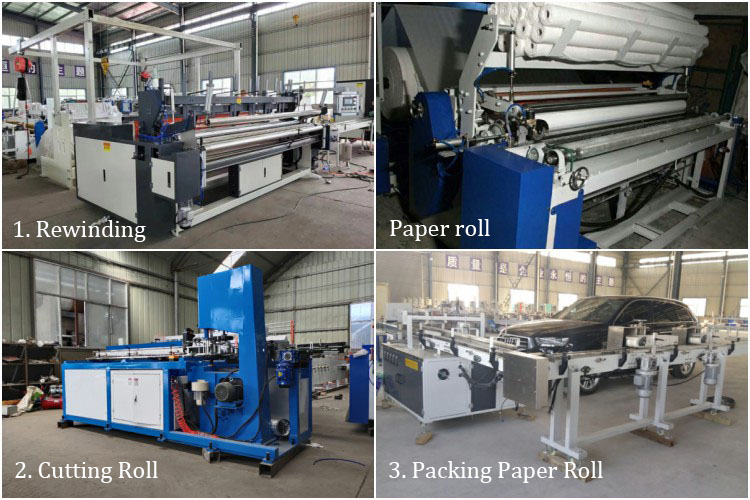

5. Toilet paper converting machine
Complete toilet tissue paper machine line includes toilet tissue paper making machine (from raw materials to paper) and toilet paper converting machine.

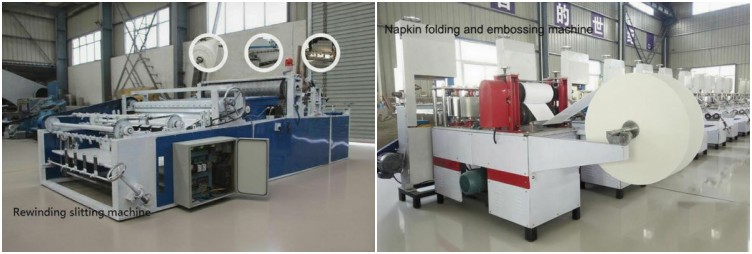

(1) Facial tissue paper machine
(2) Napkin folding machine
(3) Toilet tissue paper making machine for rewinding and slitting
