Wrapping Paper Machine

1575

Small Wrapping Paper Making Machine
Raw materials : waste paper .virgin pulp, waste carton,wood
Output paper : kraft paper,corrugated paper,fluting paper,wrapper
Capacity : 5-25 t/d
Working speed : 100-500m/min
Paper weight : 50-300g/m2
Paper width : 787-3500mm
Drive and control : gear drive ,Alternating current, frequency conversion
After-sales Service : Field installation, commissioning and training

Delivery

EXW,FOB,CFR,CIF

minimum order

1 set

Supply Ability

50set / Year

Country of Origin

China

Stock Time

30Day

Model

Quantity

US $100000.00 - US $200000.00 / set

Contact Now

add to cart

According to the purpose of paper, kraft paper machine is also a type of wrapping paper machinetput.

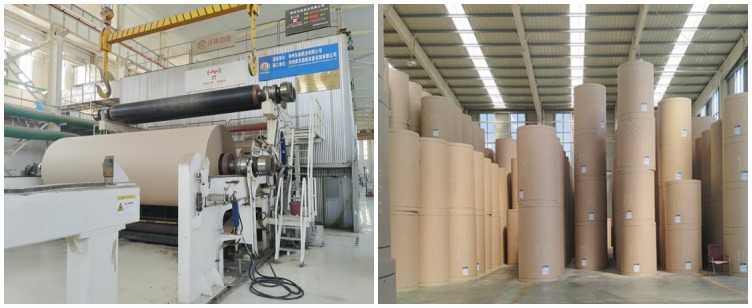

Below is kraft paper machine and finished jumbo kraft paper.

small wrapping paper machine

Main parts and working of wrapping paper machine

1.Pulp equipment of wrapping paper machine: produce high-quality pulp
2.Forming section of kraft paper machine: pulp forming wet paper
3.Press section of wrapping paper machine: dehydration
4.Dryer section of kraft paper machine: remove residual moisture
5.Calender of wrapping paper machine: ensure smoothness of the paper

Small paper making machine can make various paper products from the following raw materials

raw materials for wrapping paper machine

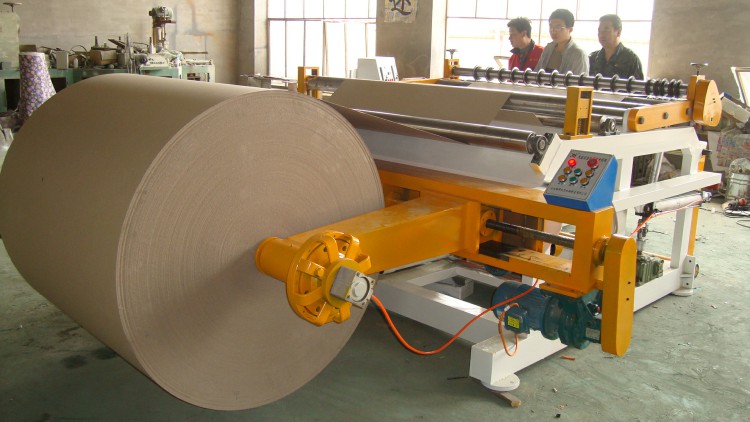

Small paper making machine are rewinding paper.

wrapping paper machine

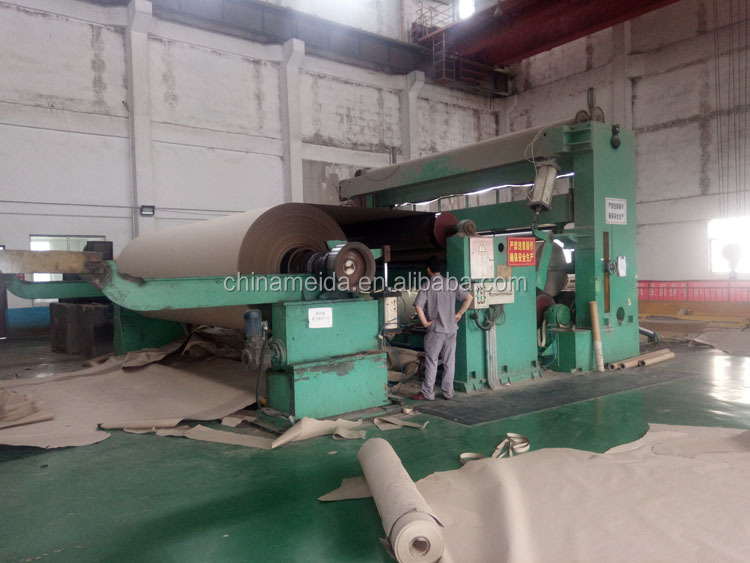

Small paper making machine are slitting paper.

wrapping paper machine

Application of finished paper from kraft paper machine

Spare Parts Explain

Cylinder mold couch dryer cylinder spreading roller for wrappping paper machine

wrapping paper machine

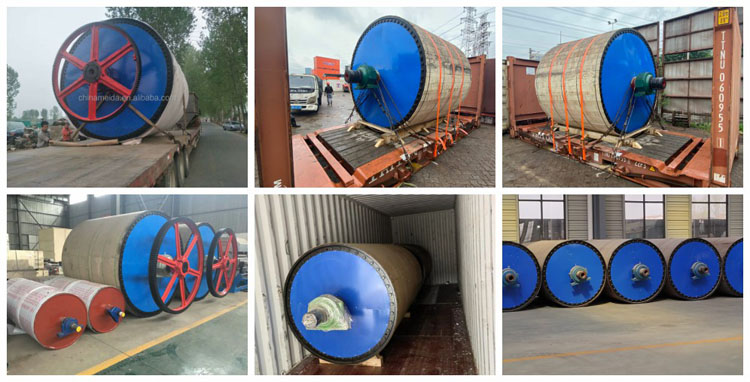

Dryer cylinder

In the papermaking process, it is a pressure vessel used to dry paper. The number of cast iron drying

cylinders accounts for about two-thirds of the total number of pressure vessels in the paper industry.

wrapping paper machine

Main technical parameters of the drying cylinder for paper making

Model	Diameter	Design pressure Mpa	Material	Hardness HB	Web width mm	Wall thickness mm	Roughness	Working speed m/min
1000	1000mm	0.3-0.5	HT250-300	190-240	1350-5000	18-27	0.2-0.4	100-800
1500	1500mm	0.3-0.8	HT250-300	190-240	1350-5000	25-32	0.2-0.4	100-800
1800	1800mm	0.3-0.8	HT250-300	190-240	1350-5000	28-36	0.2-0.4	100-800
2000	2000mm	0.3-0.8	HT250-300	190-240	1350-5000	30-40	0.2-0.4	100-800
2500	2500mm	0.3-0.8	HT250-300	190-240	1350-5000	32-47	0.2-0.4	100-800
3000	3000mm	0.3-0.8	HT250-300	190-240	1350-5000	37-56	0.2-0.4	100-800

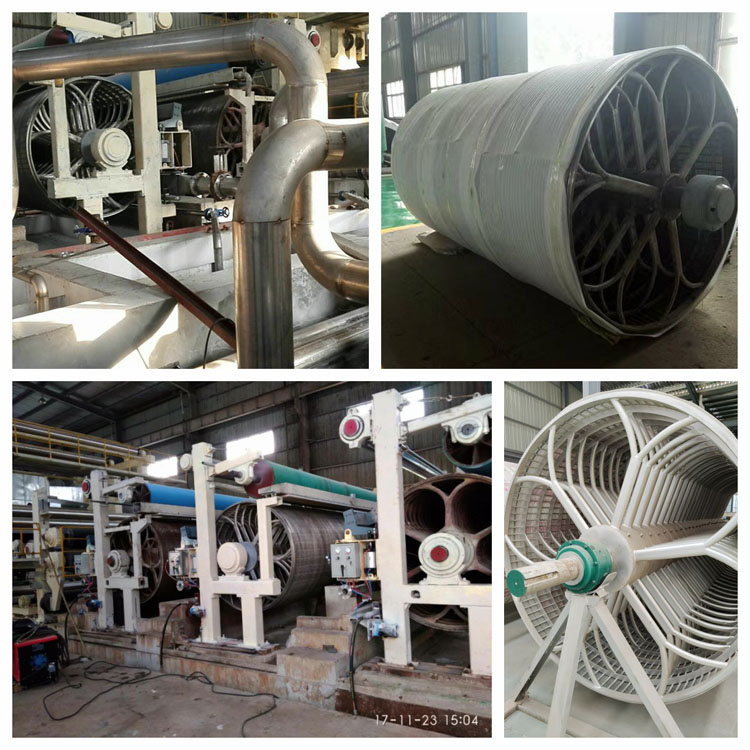

Cylinder mould

There are string type, diagonal type, winding type .

Cylinder mold of toilet tissue machine includ spindles, grids, spokes and spacers. with spokes equally spaced on main shaft, with wire racks mounted on spokes,stainless steel support ring is embedded at outer end of support bar, and grid is installed along outer edge of support steel ring and spoke, and is tightly wound with stainless steel wire.
The cylinder mold of toilet tissue machine is light in weight, corrosion-resistant and reduces energy consumption.

cylinder mold for wrapping paper machine

Cylinder mould specifications

Diameter	Face width range	Fit width of paper
1000mm	1000-5000mm	1092/1575/1760/1880/ 2400/2800/3200/3600mm
1250mm
1500mm
1800mm
2000mm

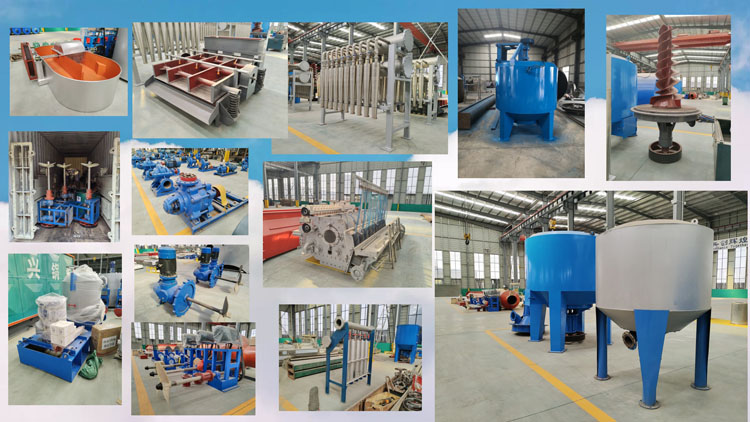

Other spare parts of small paper making machine

Hydrapulper,Vibrating screen,Headbox,Desander,Grinding machine,etc.

spare parts of wrapping paper machine

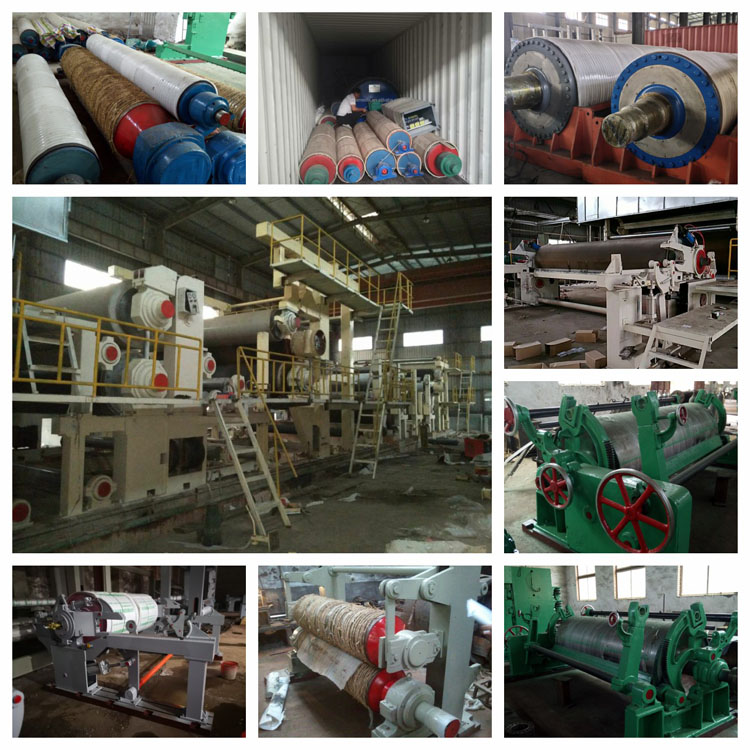

Couch roller,Pressure roller,Back roller,Scroll roll, Felt roll,etc.

spareparts of wrapping paper machine

Felt for small paper making machine

It is mainly used in drying part, shipping and filtering of other parts for making paper.
It is a device for forming and dewatering paper on paper machine.
It dehydrates the pulp suspension from the headbox and runs the paper web to the subsequent section.

felt for wrapping paper machine
