Toilet Paper Making Machine
1880
Toilet Paper Making Machine Production Line
Raw materials : waste paper, white or brown cellulose,virgin pulp,wood,bamboo
Output paper : toilet paper, tissue paper, facial tissue paper ,kitchen paper etc
Paper width : 1880 mm
Paper weight : 13-40 g/m2
Working speed : 100-300 m/min
Capacity : 5-20 t/d
Raw materials : waste paper, white or brown cellulose,virgin pulp,wood,bamboo
Output paper : toilet paper, tissue paper, facial tissue paper ,kitchen paper etc
Paper width : 1880 mm
Paper weight : 13-40 g/m2
Working speed : 100-300 m/min
Capacity : 5-20 t/d
Delivery
EXW,FOB,CFR,CIF
minimum order
1 set
Supply Ability
60set / Year
Country of Origin
China
Stock Time
40Day
Model
Quantity
US $40000.00 - US $400000.00 / set
Introduction to Toilet Paper Making Machine
The toilet paper making machine is a special paper manufacturing equipment integrating a pulping system and a paper forming system. Using waste paper, wood, bagasse and other raw materials, it conducts pulping, refining, stock preparation and other pulping processes, and then completes paper production through forming, pressing, drying and rewinding on the toilet tissue machine.
Technical parameter of toilet paper making machine
1 | Model | 1880 toilet paper making machine |
2 | Output paper | toilet tissue paper |
3 | Capacity | 5-8 t/d |
4 | Net paper width | 1880 mm |
5 | Output paper weight | 13-40g/m2 |
6 | Diameter of dryer | 2500mm |
7 | Working speed | 100-200m/min |
8 | The gauge | 2800mm |
9 | Drive and control | Alternating current, frequency conversion, section drive |
Raw Materails such as wood,waste paper,wheat straw for toilet tissue machine
I. Working Principle of toilet paper making machine
The toilet tissue machine operates on the core principles of fiber dispersion, dewatering forming, and drying solidification.
First, the pulping system of the toilet paper making machine disintegrates solid raw materials into uniform pulp with qualified concentration, removing impurities and coarse fibers. The qualified pulp is then delivered to the tissue machine, where it forms a wet web through the wire section. The wet web is further dewatered by pressing, dried by dryer cylinders to remove residual moisture, and finally rewound into jumbo toilet paper rolls. The whole process of the toilet tissue machine realizes continuous and automatic production.
The toilet tissue machine operates on the core principles of fiber dispersion, dewatering forming, and drying solidification.
First, the pulping system of the toilet paper making machine disintegrates solid raw materials into uniform pulp with qualified concentration, removing impurities and coarse fibers. The qualified pulp is then delivered to the tissue machine, where it forms a wet web through the wire section. The wet web is further dewatered by pressing, dried by dryer cylinders to remove residual moisture, and finally rewound into jumbo toilet paper rolls. The whole process of the toilet tissue machine realizes continuous and automatic production.

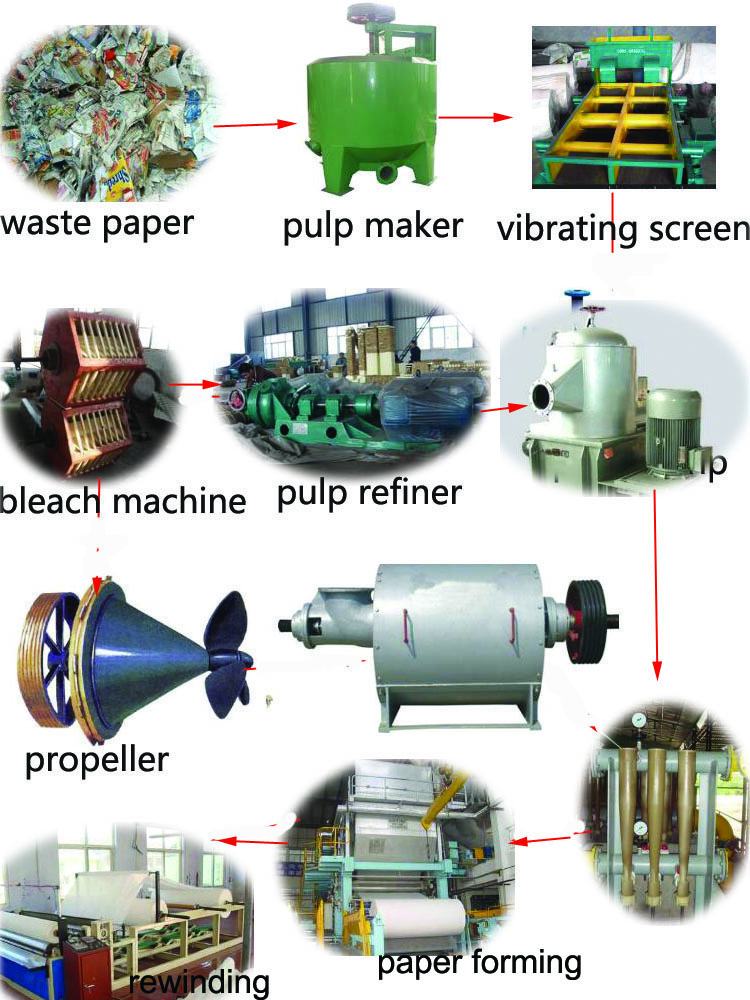

Process diagram of toilet paper making machine ( waste paper recycle)
Note: Different raw materials, pulp system of toilet paper making machine will be different
II. Complete Production Process
1. Pulping Process
Pulping: Raw materials such as waste paper and pulp boards are fed into a hydraulic pulper for fiber disintegration to form primary pulp for the toilet paper making machine.
Screening & Cleaning: Impurities like plastic, sand and ink are removed through pressure screens and cleaners to ensure clean pulp for the tissue machine.
Refining: Refiners cut and fibrillate fibers to improve bonding strength, ensuring the softness and strength of paper produced by the toilet tissue machine.
Stock Preparation & Consistency Control: The pulp consistency is adjusted to 0.3%–1.3% to meet the forming requirements of the toilet paper making machine.
2. Paper Forming Process
Forming: Diluted pulp is evenly sprayed onto the forming fabric via the headbox of the tissue machine, forming a wet web through gravity and vacuum dewatering.
Press Dewatering: The wet web enters the press section of the toilet tissue machine for mechanical squeezing, greatly reducing moisture content and enhancing sheet formation.
Drying: The web is dried on steam-heated dryer cylinders of the toilet paper making machine to reach the required dryness.
Rewinding: The dried paper is calendered for smoothness and finally rewound into jumbo rolls by the rewinder of the tissue machine.
1. Pulping Process
Pulping: Raw materials such as waste paper and pulp boards are fed into a hydraulic pulper for fiber disintegration to form primary pulp for the toilet paper making machine.
Screening & Cleaning: Impurities like plastic, sand and ink are removed through pressure screens and cleaners to ensure clean pulp for the tissue machine.
Refining: Refiners cut and fibrillate fibers to improve bonding strength, ensuring the softness and strength of paper produced by the toilet tissue machine.
Stock Preparation & Consistency Control: The pulp consistency is adjusted to 0.3%–1.3% to meet the forming requirements of the toilet paper making machine.
2. Paper Forming Process
Forming: Diluted pulp is evenly sprayed onto the forming fabric via the headbox of the tissue machine, forming a wet web through gravity and vacuum dewatering.
Press Dewatering: The wet web enters the press section of the toilet tissue machine for mechanical squeezing, greatly reducing moisture content and enhancing sheet formation.
Drying: The web is dried on steam-heated dryer cylinders of the toilet paper making machine to reach the required dryness.
Rewinding: The dried paper is calendered for smoothness and finally rewound into jumbo rolls by the rewinder of the tissue machine.
III. Components of the Toilet Tissue Machine
1. Pulping System
Hydraulic pulper，High-density cleaner, pressure screen，Double disc refiner，Stock chest, consistency control device
2. Main Body of the Toilet Paper Making Machine
Headbox (stock feeding system)，Forming wire section (wet web forming)，Press section (mechanical dewatering)，Dryer section (steam drying)，Calendering deviceRewinder
3. Auxiliary Systems
Steam heating system，White water recycling and wastewater treatment system，Electrical automatic control system，Drive and tensioning system
IV. Spare parts explain for toilet paper making machine

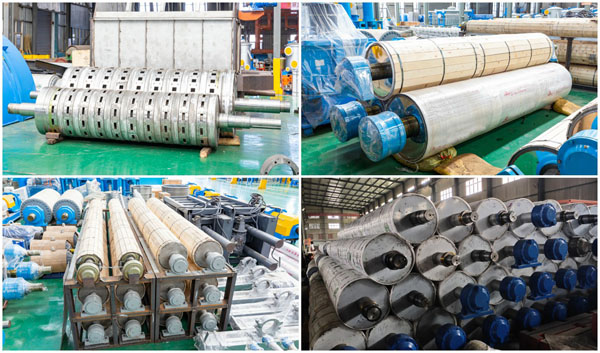

Hydrapulper,Vibrating screen,Headbox,Desander,Grinding machine,etc for toilet tissue machine
Couch roller,Pressure roller,Back roller,Scroll roll, Felt roll,etc for toilet tissue machine
Dryer cylinder of toilet paper making machine
It is pressure vessel for drying paper on toilet tissue machine.
Technical parameters of dryer cylinder for toilet paper making machine
Model | Diameter | pressure | Material | Hardness | Web width | Wall thickness | Roughness | Working speed |
1000 | 1000mm | 0.3-0.5Mpa | HT250-300 | 190-240HB | 1350-5000mm | 18-27mm | 0.2-0.4 | 100-800m/min |
| 1500 | 1500mm | 0.3-0.8Mpa | 25-32mm | |||||
| 1800 | 1800mm | 0.3-0.8Mpa | 28-36mm | |||||
| 2000 | 2000mm | 0.3-0.8Mpa | 30-40mm | |||||
| 2500 | 2500mm | 0.3-0.8Mpa | 32-47mm | |||||
| 3000 | 3000mm | 0.3-0.8Mpa | 37-56mm |

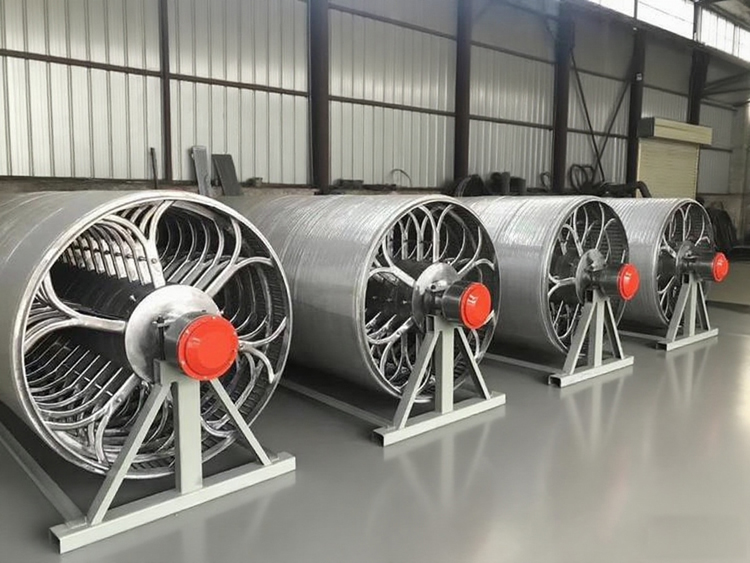

Cylinder mold of toilet tissue machine includ spindles, grids, spokes and spacers.
Cylinder mould of toilet tissue machine specifications
Diameter | Face width range | Fit width of paper |
1000mm | 1000-5000mm | 1092/1575/1760/1880/ 2400/2800/3200/3600mm |
| 1250mm | ||
| 1500mm | ||
| 1800mm | ||
| 2000mm |
